AUTOMATIC SWING DOOR OPERATOR

ASW 100 Swing

Affordable Entry Level Operator

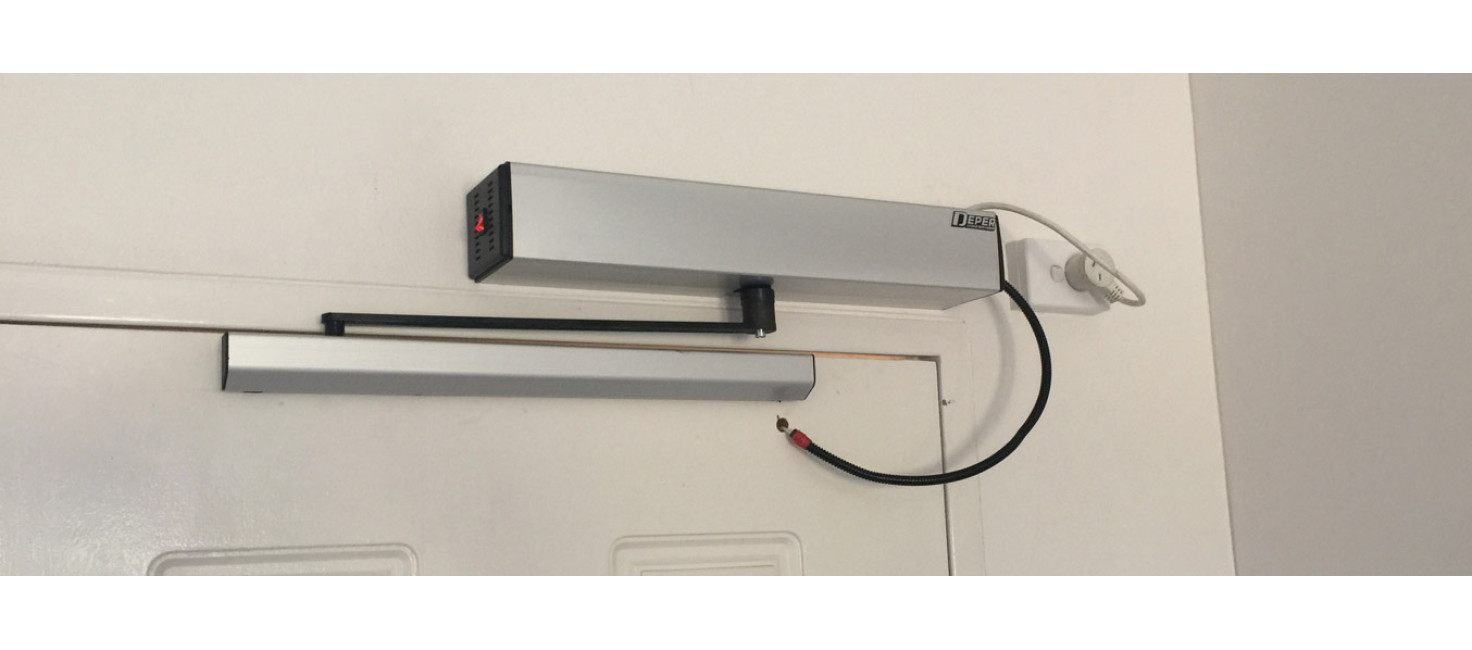

The Talbot ASW100 swing door operator is a reliable and affordable entry level automated swing door unit, perfect for a wide range of light commercial and domestic uses. The simplicity of the unit means it can be easily installed onto any existing swing door.

Quick Link

Quality Components

Highly efficient long life and high torque brushless DC motor alongside an intelligent microprocessor that automatically detects door weight and adjusts accordingly to ensure smooth door operation.

Intelligent safety

All ASL sliding doors come standard with a dedicated fire signal input as well as obstruction sensitivity. Combining these features with infrared presence sensors make this one of the safest doors on the market.

Key Features

Compact and quiet operator capable of driving door leaves up to 100kg and 1200mm wide.
Built in obstruction sensitivity.
Wide range of activation options including remotes, push buttons, sensors, keypads and more.
DIY installation.

Downloads

Request for CAD DWG file.

ASW 100 Installation Manual

Technical Specifications

Door configuration:	Single leaf
Opening time:	3 ~ 7S
Door leaf weight up to:	100Kg
Door leaf width up to:	1200mm
Working Voltage:	240V 50 – 60 Hz
Powder consumption:	50w
Manual force:	<30N
Swinging noise:	<55Db
Product Dimensions(mm):	515L x 90W x x95H

Service Enquire form

Technical Specifications

Door configuration:	Single leaf
Opening time:	3 ~ 7S
Door leaf weight up to:	100Kg
Door leaf width up to:	1200mm
Working Voltage:	240V 50 – 60 Hz
Powder consumption:	50w
Manual force:	<30N
Swinging noise:	<55Db
Product Dimensions(mm):	515L x 90W x x95H
