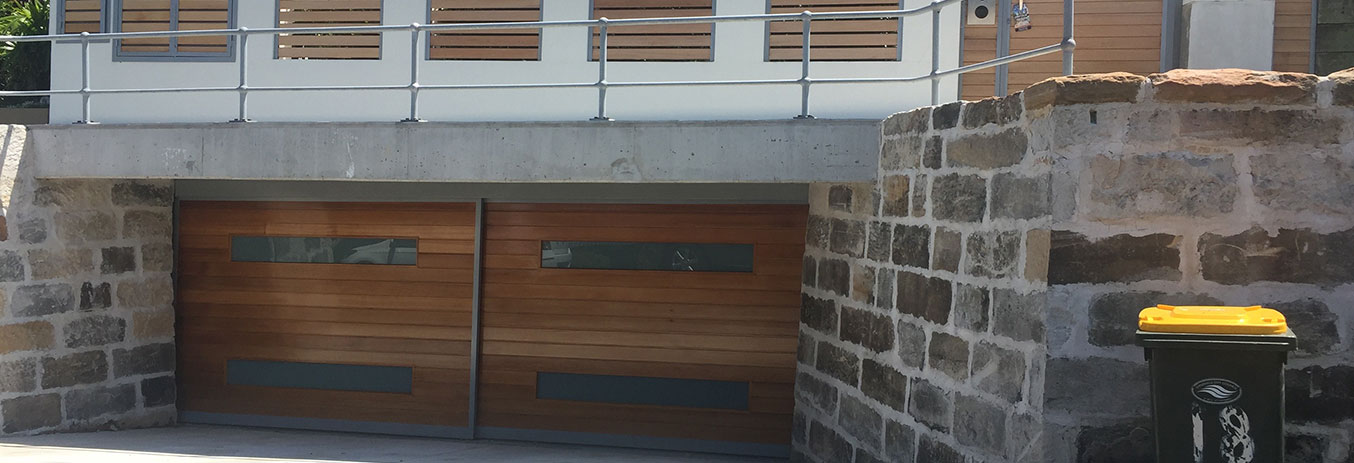

Sliding Garage Doors
The sliding garage door system uses our ASL 200 or ASL 250 sliding door systems mounted back-to-back allowing for a dual sliding garage door that opens one side or the other.
The advantage of the system is that in only requires 120mm head clearance for those low-level ceilings that still want to fit the 4WD inside.
The system supports a door leaf weight of 150kg with the 200 system and 300kg with the 250 system
Highly efficient long life and high torque brushless DC motor alongside an intelligent microprocessor that automatically detects door weight and adjusts accordingly to ensure smooth door operation.
All ASL sliding doors come standard with a dedicated fire signal input as well as obstruction sensitivity. Combining these features with infrared presence sensors make this one of the safest doors on the market.
Our in-house fabrication team can provide the aluminium framed door leaves with the infill design of your choice.
We then also provide the installation service, fitting the door into your garage and commissioning the doors.
- Our door range uses cutting edge technology with a unique microprocessor system which can rapidly and accurately detect the door size and weight; and set the best operation parameters to make sure the door operates smoothly
- Long life, high torque brushless DC motor drive system. The helical gear transmission ensures stable and reliable operation with continued use on heavy door leaves.
- Interlocking option which prevents doors in an airlock situation from opening until the other door has fully closed.
- Obstruction sensitivity – if when closing it meets an obstruction the doors will automatically re-open as per the AS 5007-2007. When the power is off, the doors are easily manually opened or closed.
- Includes provision for BMS and fire signal link
- Available in anodised aluminium or powder coated finishes.
Request for CAD DWG file.
| Door operating speed: | 20-50cm/s Adjustable |
|---|---|
| Double Door leaf Weight: | 200kg |
| Single Door leaf weight: | 150kg |
| Rated Power consumption: | 65w |
| Working Voltage: | 240V 50 – 60 Hz |
| Motor: | 24v 100W (Brushless) |
| Motor Dimensions: | 140mm x 162.5mm |
| Door operating speed: | 20-50cm/s Adjustable |
|---|---|
| Double Door leaf Weight: | 200kg |
| Single Door leaf weight: | 150kg |
| Rated Power consumption: | 65w |
| Working Voltage: | 240V 50 – 60 Hz |
| Motor: | 24v 100W (Brushless) |
| Motor Dimensions: | 140mm x 162.5mm |
