ASW 200 Swing
Heavy Duty, Spring Closing

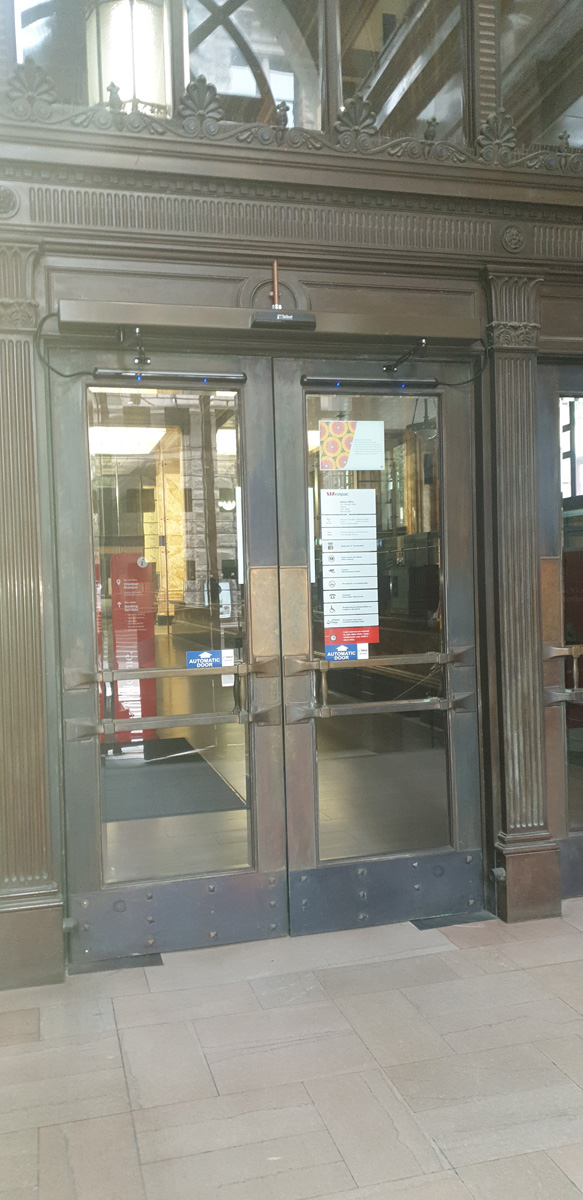

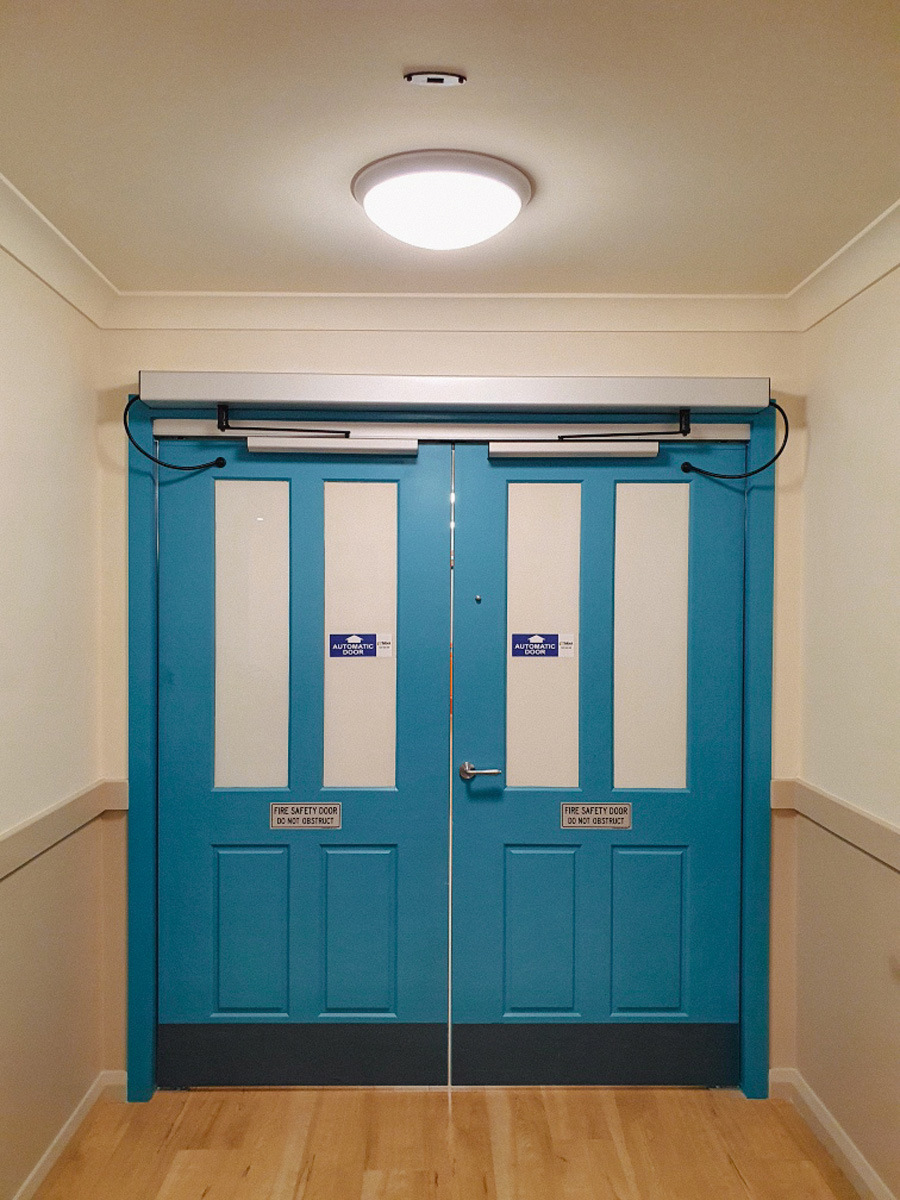

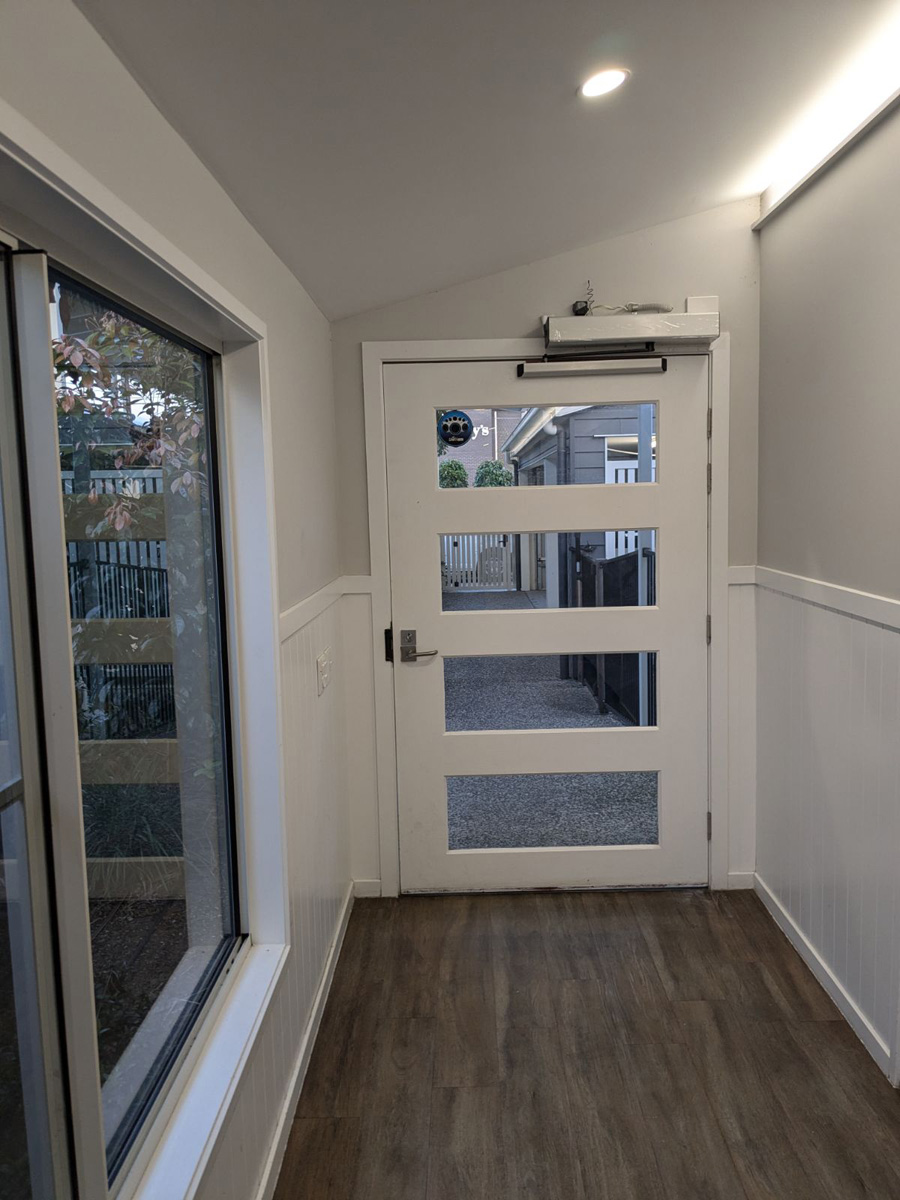

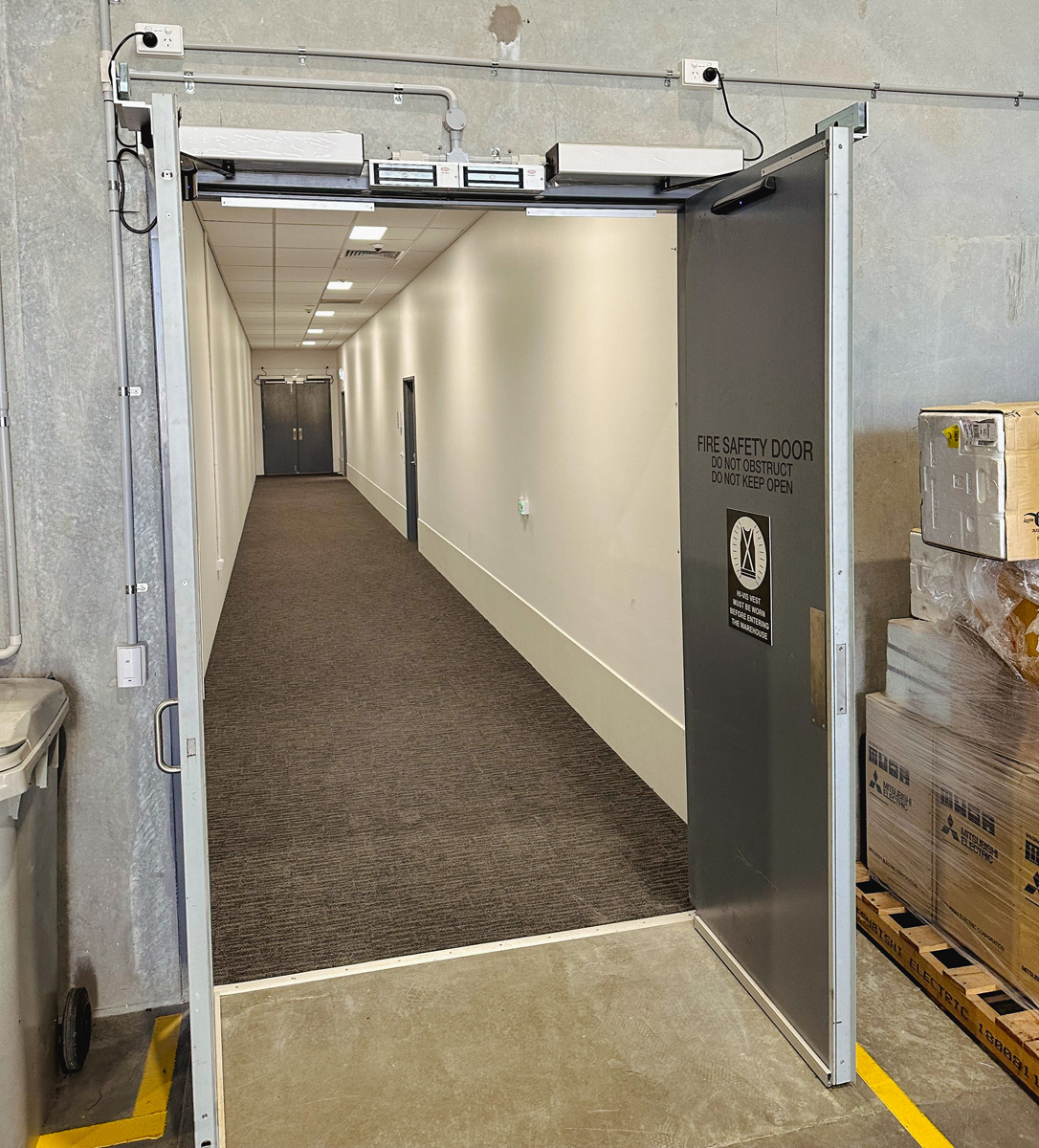

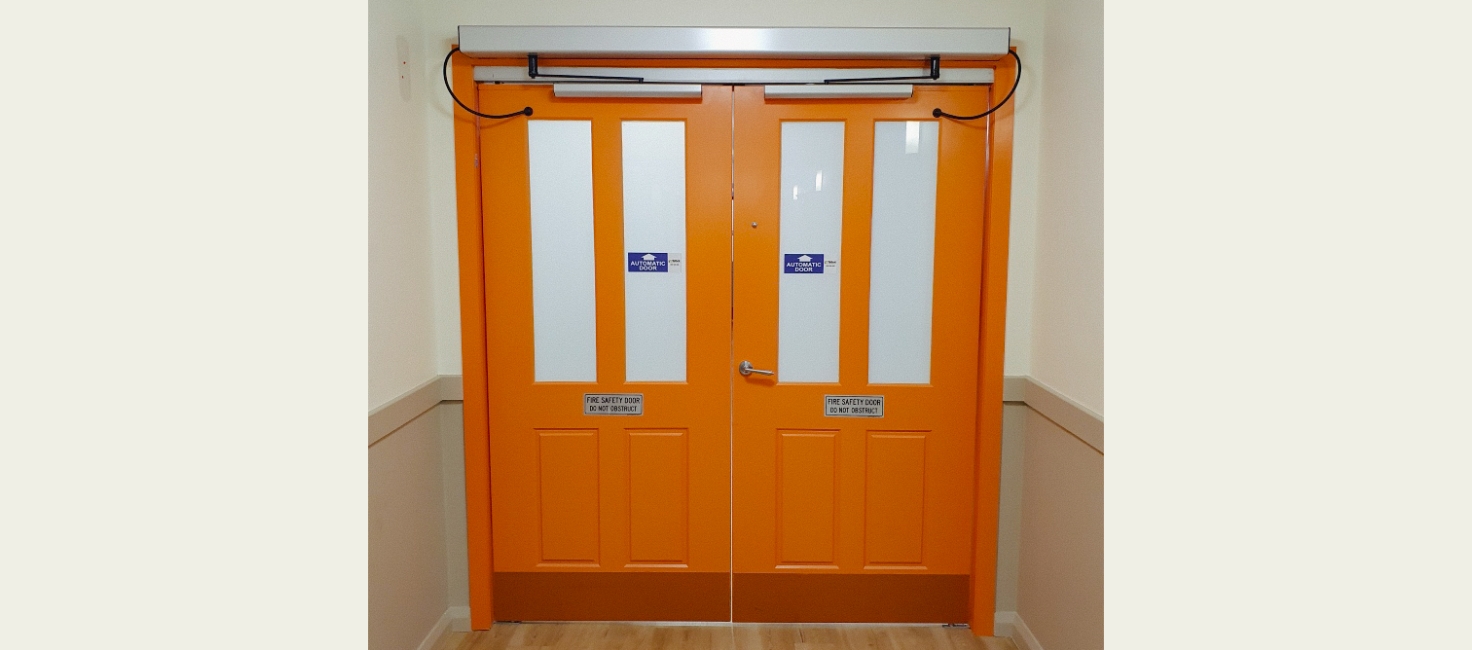

The Talbot ASW 200 swing door operator is a heavy duty, reliable unit, perfect for a wide range of commercial and domestic uses. This unit is fire rated and works as a spring closure when power fails.
Key Features
- Compact and quiet operator capable of driving door leaves up to 300kg and 1400mm wide.
- Built in obstruction sensitivity.
- Wide range of activation options including remotes, push buttons, sensors, keypads and more.

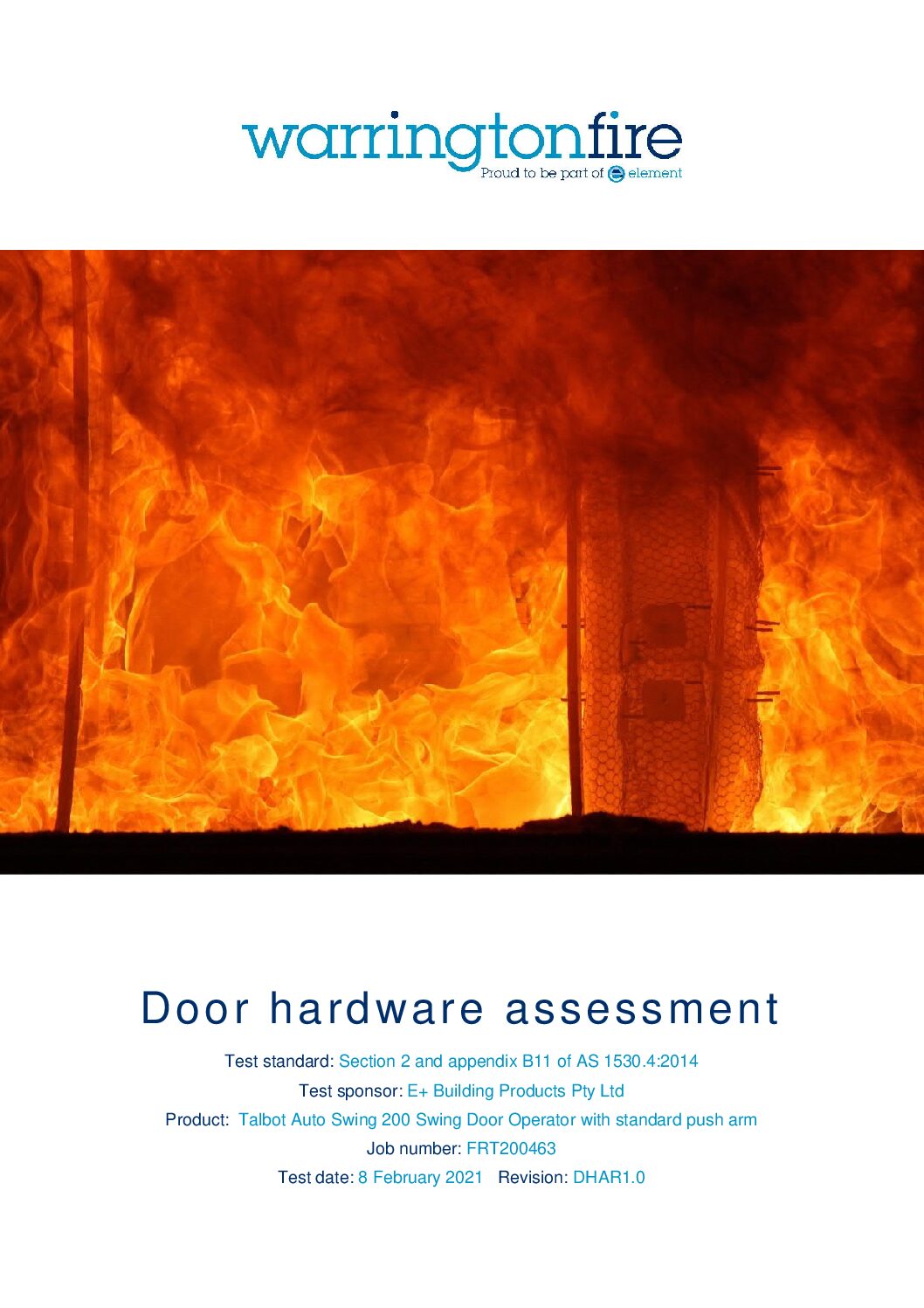

- Fire Rated – (Fire Core Doors) Test No: DHAR FRT 190260a.1
- DIY installation.

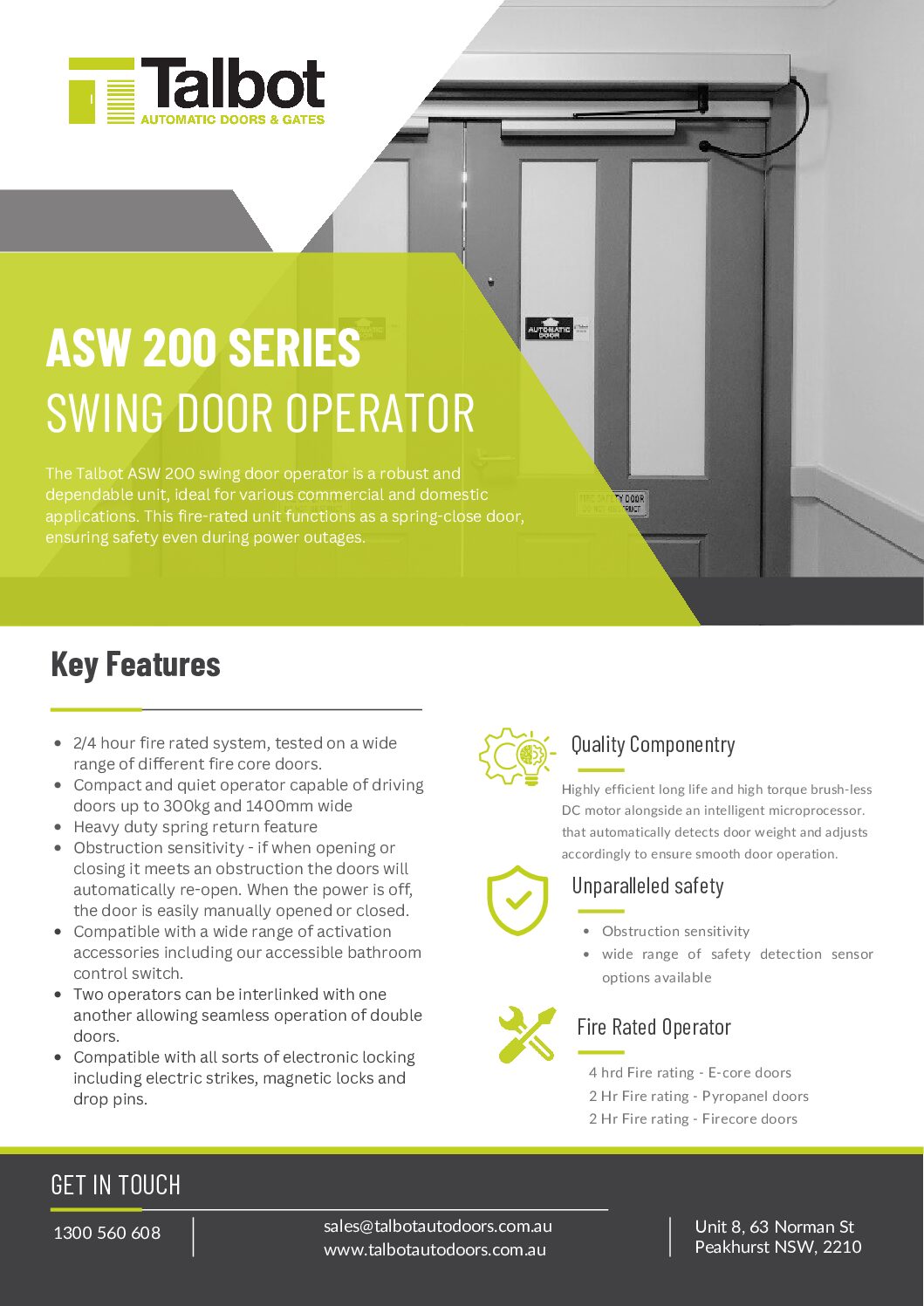

Downloads

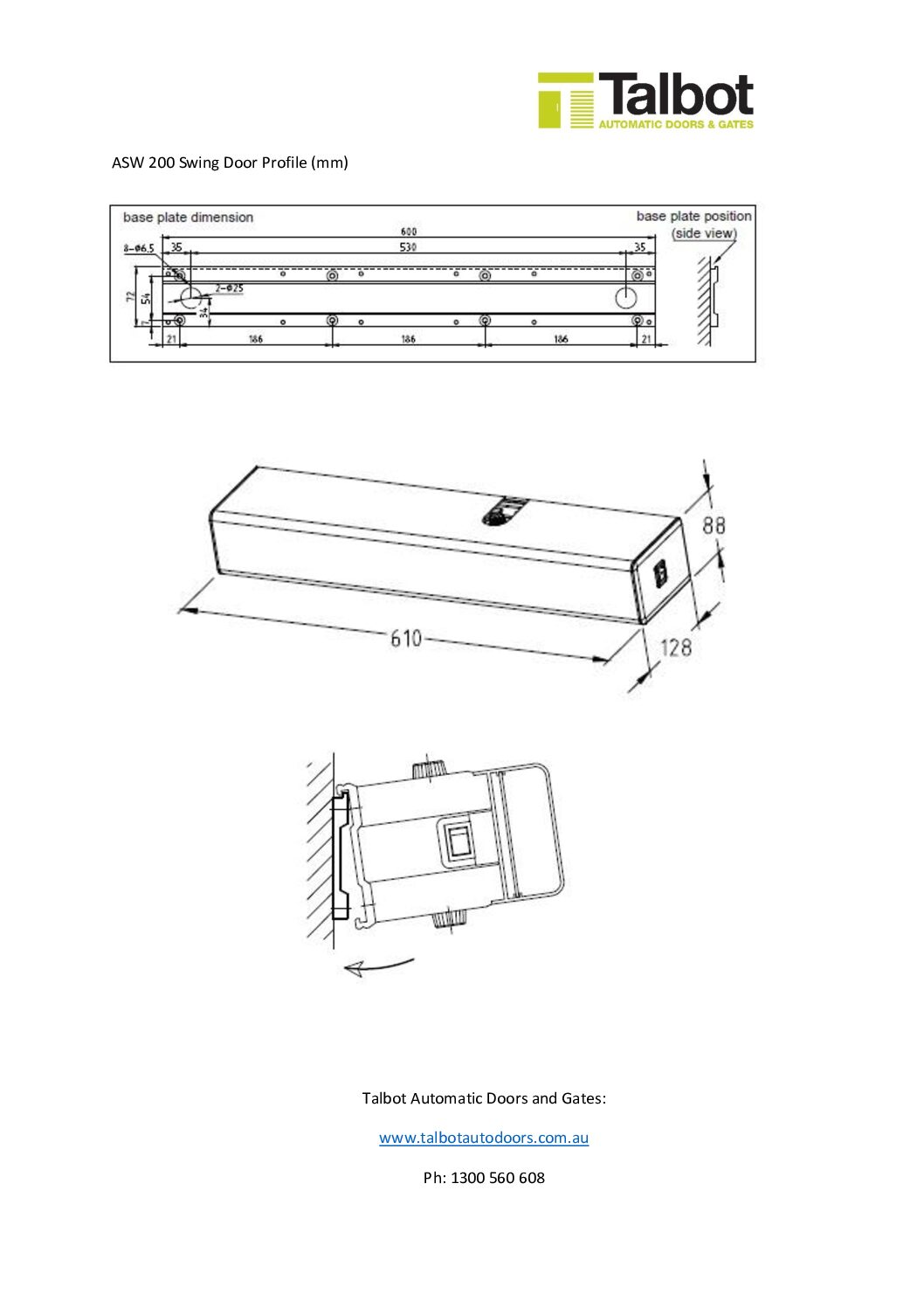

Request for CAD DWG file.
Technical Specifications
- Door configuration : Single or double leaf
- opening time : 3 – 7sec (Adjustable)
- Door leaf weight : up to 300Kg
- Door leaf width : up to 1400mm
- Working Voltage : 240V 50 – 60 Hz
- Powder consumption : 100w
- Hold open time : 0.5 – 30 Sec (Adjustable)
- Environment temperature : -20°C – 45°C
- Relative humidity : < 85%
- Product Dimension (mm) : 128W x 610L x 88H
Service Enquire form
Technical Specifications
- Door configuration : Single or double leaf
- opening time : 3 – 7sec (Adjustable)
- Door leaf weight : up to 300Kg
- Door leaf width : up to 1400mm
- Working Voltage : 240V 50 – 60 Hz
- Powder consumption : 100w
- Hold open time : 0.5 – 30 Sec (Adjustable)
- Environment temperature : -20°C – 45°C
- Relative humidity : < 85%
- Product Dimension (mm) : 128W x 610L x 88H
