ASW3
ASW3 Series

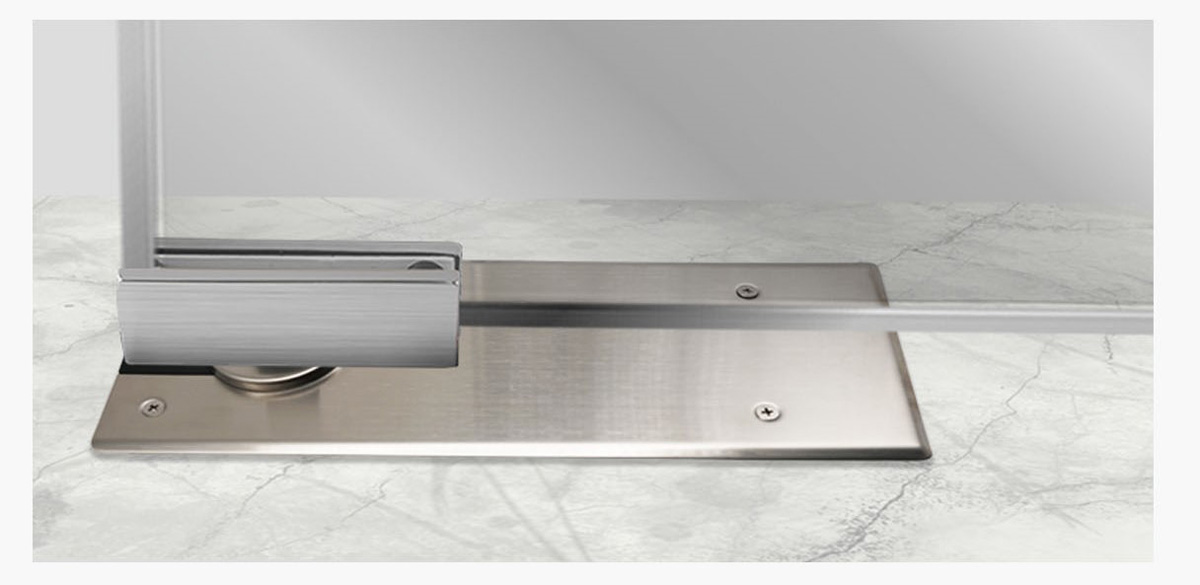

In Ground Swing Door OperatorThe Talbot ASW3 series represents the newest addition to our range of automatic door products. This concealed in-ground operator boasts an IP68 rating, ensuring durability and reliability. With the ability to operate in a full 180-degree arc, it optimizes people flow and enhances building access.
Quality Componentry
Highly efficient long life and high torque brush-less DC motor alongside an intelligent microprocessor. that automatically detects door weight and adjusts accordingly to ensure smooth door operation.
Unparalleled safety
- Obstruction sensitivity
- wide range of safety detection sensor options available
180 Degree operation
The ASW3 Series operator can be configured to open in both directions allowing for seamless and intuitive people flow.
Door Configurations
The ASW3 is designed for both aluminum framed and frame less glass door leaves up to 1200mm wide.
Operation modes:
- Auto – Sensor access inside and outside
- Open – Door hold open function
- Lock – Door locked
Key Features
- IP68 Rated floor box allows the ASW3 series to be installed on all external building doors.
- Compact and quiet operator capable of driving doors up to 150kg and 1200mm wide
- Obstruction sensitivity – if when opening or closing it meets an obstruction the
doors will automatically re-open. When the power is off, the door is easily manually opened or closed. - Compatible with a wide range of activation accessories including our accessible bathroom control switch.
- Compatible with all sorts of electronic locking including electric strikes, magnetic locks and drop pins.
- Slim form factor allows the ASW3 operator to easily replace a traditional hydraulic floor closer allowing us to retrofit existing pivot doors
Downloads
Request for CAD DWG file.
Technical Specifications
| Power Voltage: | AC 240v 50-60Hz |
|---|---|
| Motor: | DC24v – 55w |
| Max door leaf weight: | 150Kg Per Leaf |
| Max door leaf width: | 1200mm |
| Opening Time: | 6-12s Adjustable |
| Max opening angle: | 180 Degrees |
| Door hold open time: | 1 – 30s Adjustable |
| Noise: | 60Db or less |
| Working Temperature: | -20C to +50c |
| Product Size: | 330mm x116mm x 100mm |
| Protection Level: | IP68 |
Service Enquire form
Technical Specifications
| Power Voltage: | AC 240v 50-60Hz |
|---|---|
| Motor: | DC24v – 55w |
| Max door leaf weight: | 150Kg Per Leaf |
| Max door leaf width: | 1200mm |
| Opening Time: | 6-12s Adjustable |
| Max opening angle: | 180 Degrees |
| Door hold open time: | 1 – 30s Adjustable |
| Noise: | 60Db or less |
| Working Temperature: | -20C to +50c |
| Product Size: | 330mm x116mm x 100mm |
| Protection Level: | IP68 |
